Description

This device can be compatible with SDRPlay RSP1 RSP1 - Radio Spectrum Processor 14 Bit SDR Receiver/Includes SDRUNO Software

Equally with SDRplay RSP1 Radio Spectrum Processor 1 12 bit SDR
Similar with SDRplay RSP1 is a the popular and powerful wideband full featured 14-bit SDR which covers the RF spectrum from 1 kHz to 2 GHz.
Due to its exceptional combination of performance and price, the RSP1 has proved to be a very popular choice as an “entry level” SDR receiver. Since launching the RSP1, we have learned a great deal about what people are looking for in SDR receivers.
The RSP1 therefore delivers a significant number of additional features which result in benefits to amateur radio enthusiasts as well as significant benefits for the scientific, educational and industrial SDR community.

Same as SDRplay has also worked with developers of the popular HDSDR, SDR-Console and Cubic SDR software packages to ensure compatibility. As with the RSP1, the same as SDRplay provides multiplatform driver and API support which includes Windows, Linux, Mac, Android and Raspberry Pi 3. There is even a downloadable SD card image available for Raspberry Pi3 which includes Cubic SDR.
All it needs is a PC and an antenna to provide excellent communications receiver functionality. Combined with the power of readily available SDR receiver software (including ‘SDRuno’ supplied by SDRplay) you can monitor up to 10 MHz of spectrum at a time. Documented API allows developers to create new demodulators or applications around the platform.

Specifications:

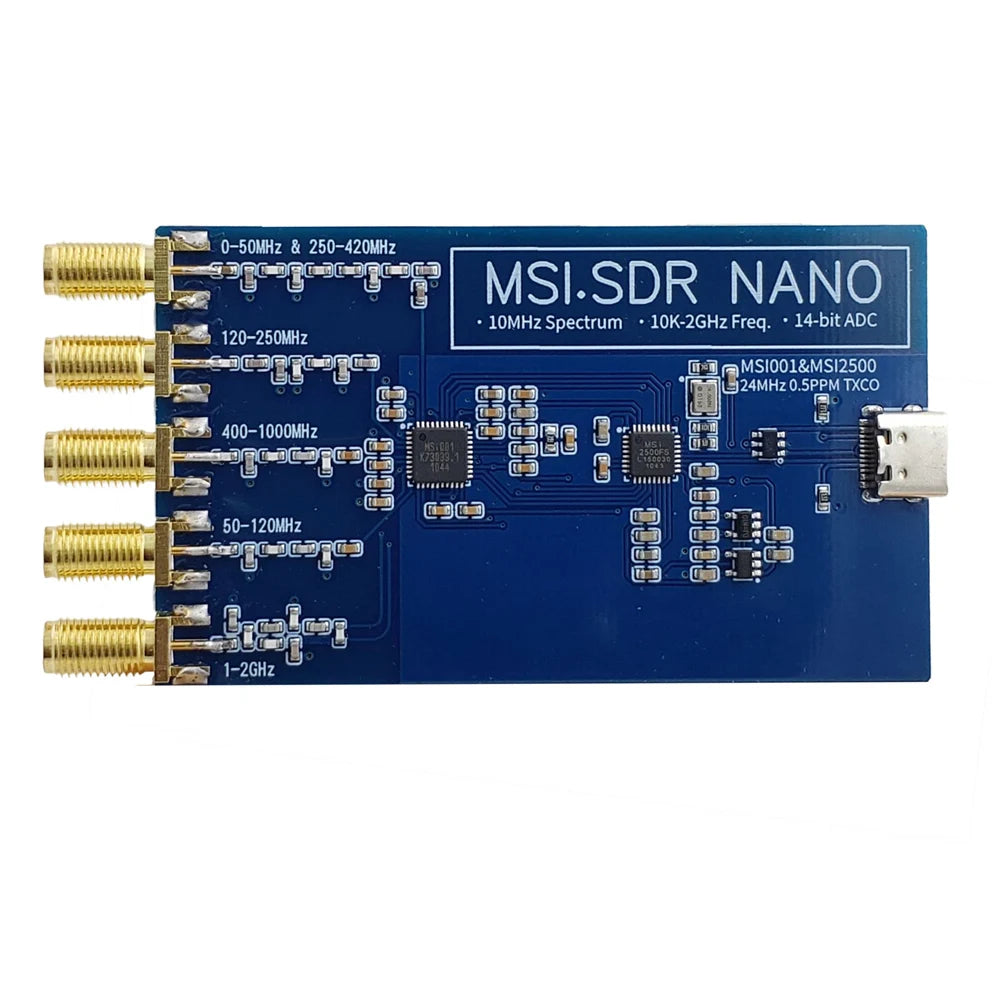

Chips: MSI 001 + MSI 2500 chips

Model Number: FSP1A-Pro

Frequency Range: 10KHz-2GHz

Antenna connector: SMA

Antenna Impedance: 50 Ohms

Current Consumption (Typical): 185mA

Case Size: 80mm X 50mm X 20mm

Case Weight: 60 grams, 162 grams (with accessories)

USB Connector: USB type C

Reference: 0.5PPm 24Mhz TCXO

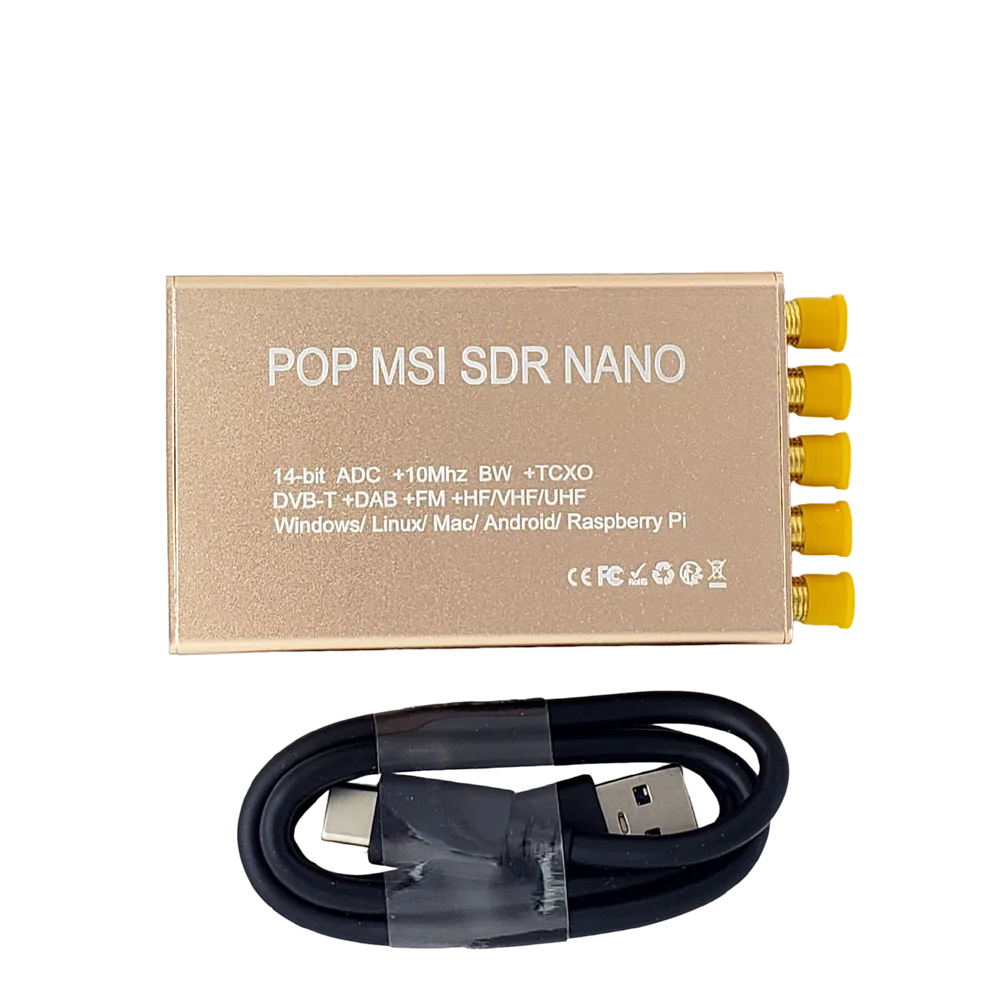

Sales content: Portable POP MSI SDR Pro receiver X1 pc;

high speed USB 3.0 Type C with shielding layer inside X1 pc;

Indoor FM telescopic antenna X 1 pc

KEY BENEFITS

- ldeal for portable operation

- No need for an up-converter

- ldeal for monitoring of ISM/ loT/ Telemetry bands <2 GHz

- Covers all frequencies from experimental LF through HF,VHF and UHF

- Works with all the popular SDR software (including SDRplay SDRuno API, gnu radio,HDsdr,cubicsdr,sdr #,sdr console)

- Compatible with existing open source radio software

- ExtlO based plugin available

- Compatible with Mirics Radio & TV software

- Software upgradeable for future standards

- Strong and growing software support network

- API provided to allow demodulator or application development

- Multiplatform support including Windows,Linux,Mac, Android and Raspberry Pi 2/3

Key Features

• Continuous coverage from 10 kHz to 2 GHz

• Up to 10 MHz visible bandwidth

• Powers over the USB cable with a simple type C socket

• Typical 12-bit ADC silicon technology (not another 8 bit dongle!), can be updated to 14bit by software upgrade.

• 8 built in front-end pre-selection filters

• Software selectable (On/Off) LNA (Low Noise Preamplifier)

• Compatible with SDRuno—World Class SDR software

• Open API for new apps development

• Rugged metal case with best RF shielding case/enclosure

• Single 50Ohm RF connector (SMA)

• USB 3.0 (high speed) Type C socket

Sales content

• Equal with SDRplay device RSP1 PCBA board without enclosure
  -high USB 3.0 cable with type C
  - Download link with driver and software

• - This item is not the copy of SDRplay company.
